ATEM HDMI Comparison
If your church uses HDMI cameras and displays, choosing the right video switcher can make livestreaming simpler and more professional. Blackmagic Design’s ATEM Mini HDMI switchers are known for being reliable, easy to use, and ideal for volunteer-led production setups.
In this post, we’ll compare three of Blackmagic’s most popular HDMI models — the ATEM Mini Pro, ATEM Mini Pro ISO, and ATEM Mini Extreme HDMI — to help you decide which best fits your church’s size, budget, and livestreaming goals.
Note: This article focuses on the HDMI-based ATEM models. If your system uses professional SDI equipment or longer cable runs, Blackmagic’s ATEM SDI line may be better suited — we’ll cover those in a separate post.
Learn more about ATEM Mini with our in-depth setup guide:
ATEM Mini Pro
The ATEM Mini Pro is a powerful, compact switcher designed for churches that want to stream directly without relying on a separate computer.
Key Features:
- 4 HDMI inputs for cameras, computers, or media sources
- Built-in Ethernet streaming directly to YouTube, Facebook, and RTMP platforms
- Recording to a USB drive (program output only)
- USB-C output that appears as a webcam input
- Multiview output to preview sources, audio levels, and status
- Integrated Fairlight audio mixer for EQ and volume adjustments
Best For:
Small to mid-sized churches that need dependable, all-in-one streaming with straightforward controls and simple setup.

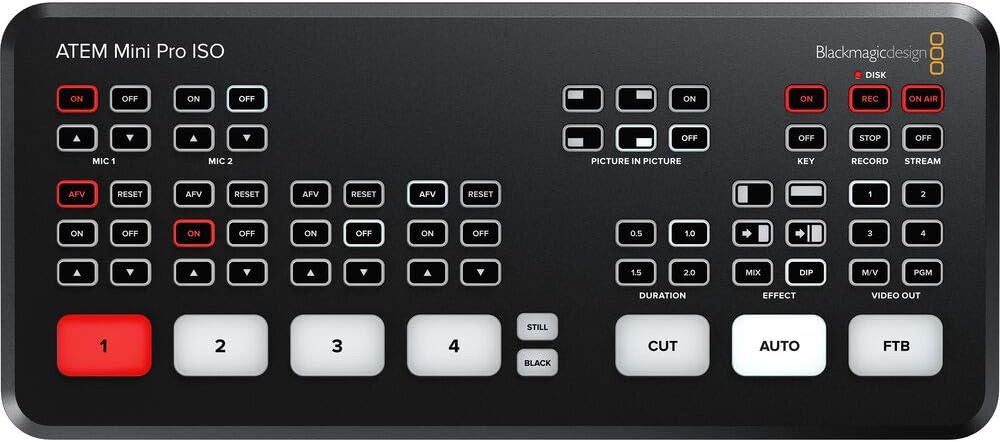

ATEM Mini Pro ISO
The ATEM Mini Pro ISO builds on the Mini Pro by adding isolated recording for each input — perfect for post-production editing or creating sermon highlights.
Key Features:
- All Mini Pro features plus ISO recording of each HDMI input and the program feed
- Exports a DaVinci Resolve project so you can edit each camera angle with cuts and transitions already in place
- 4 HDMI inputs and 1 HDMI output
- Single USB-C connection for recording or computer output
Best For:
Churches that record services and edit them later for uploading or archiving, giving greater flexibility for post-production work.

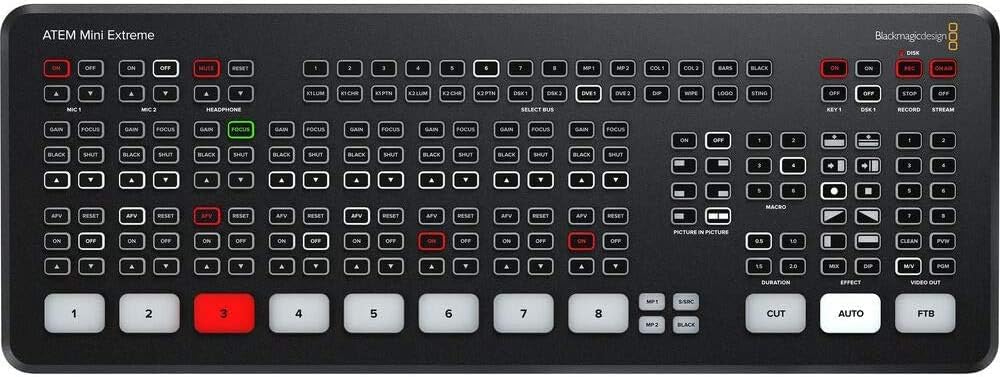

ATEM Mini Extreme HDMI
The ATEM Mini Extreme HDMI is the largest model in the HDMI line, designed for multi-camera production and expanded outputs.
Key Features:
- 8 HDMI inputs and 2 HDMI outputs
- 2 USB Type-C ports for recording and webcam output
- Built-in Ethernet streaming
- Multiview display with up to 16 views
- Fairlight audio mixer with more inputs and control
- Records the program feed only to a USB drive (no ISO recording on this model)
Best For:
Medium-to-large churches using four or more cameras who need more inputs and outputs for a larger production setup but don’t require ISO recording.
ATEM Mini Pro
ATEM Mini Pro ISO
ATEM Mini Extreme HDMI
HDMI ATEM Switcher Comparison
| Feature | ATEM Mini Pro | ATEM Mini Pro ISO | ATEM Mini Extreme HDMI |
|---|---|---|---|
| HDMI Inputs | 4 | 4 | 8 |
| Streaming via Ethernet | Yes | Yes | Yes |
| Recording to USB | Program only | ISO (all 4 inputs) + Program | Program only |
| Multiview | Yes | Yes | Yes (up to 16 views) |
| USB Ports | 1 × USB-C | 1 × USB-C | 2 × USB Type-C |
| HDMI Outputs | 1 | 1 | 2 |
| Webcam Output (USB) | Yes | Yes | Yes |
| Audio Mixer | Fairlight (basic) | Fairlight (basic) | Fairlight (more inputs & controls) |
(Specifications verified from Blackmagic Design documentation and product manuals, 2025.)
Which One Is Right for Your Church?
- ATEM Mini Pro – Ideal for smaller churches that want to go live quickly with minimal setup.
- ATEM Mini Pro ISO – Perfect for churches that edit recordings later and want to capture each camera feed.
- ATEM Mini Extreme HDMI – Best for larger productions with more cameras and volunteers handling complex services.
Final Thoughts
Each of these HDMI ATEM switchers offers churches professional-grade performance in a compact design. Whether you’re a small team just starting or a larger production crew looking to expand, there’s an ATEM Mini model that fits your workflow and budget.
If you use HDMI cameras, the ATEM Mini line is the best place to start for simple, reliable livestreaming. For those with SDI gear or broadcast needs, watch for our upcoming guide on the ATEM SDI series.
