ATEM SDI Constellation Comparison

What is the ATEM SDI Constellation?

For churches running large multi-camera productions—Christmas, Easter, conferences, or multi-campus events—an ATEM Mini isn’t always enough. That’s where the ATEM Constellation 4K family comes in. These are Blackmagic’s higher-end SDI switchers, designed for big productions, multiple M/E rows, and 12G-SDI 4K workflows.

In our ATEM SDI Constellation Comparison guide, we’ll compare the four main ATEM Constellation 4K models and give church-focused examples of where each one fits best:

• ATEM 1 M/E Constellation 4K
• ATEM 2 M/E Constellation 4K
• ATEM 4 M/E Constellation 4K
• ATEM 4 M/E Constellation 4K Plus

All four are Ultra HD 4K 12G-SDI switchers with standards conversion on every input and built-in Fairlight audio mixers.

ATEM SDI Constellation Models

---

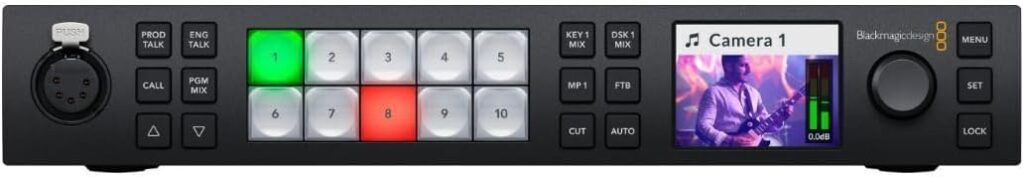

The ATEM 1 M/E Constellation 4K is the entry point into the Constellation line, but it’s already a serious upgrade from desktop switchers.

Key Specs (simplified):

• 1 M/E row
• 10 standards-converted 12G-SDI inputs
• 6× 12G-SDI aux outputs
• 1 Multiview (up to 16 windows)
• DVE, 4 ATEM Advanced Keyers
• Built-in talkback, media players, USB webcam output
• Fairlight 28-channel audio mixer

Best church use cases:

• Single-venue church with 6–10 cameras plus a few graphics/ProPresenter feeds
• Churches needing true 4K SDI support
• Teams who want rackmount reliability but only one main M/E row

---

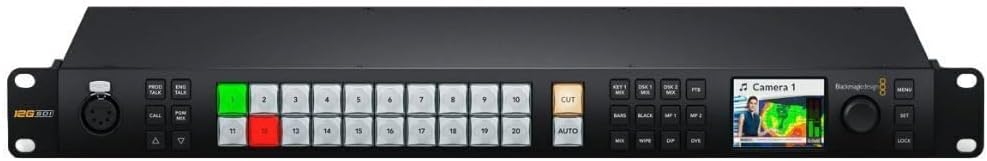

The ATEM 2 M/E Constellation 4K doubles many capabilities of the 1 M/E and adds another full mix/effects row.

Key Specs (simplified):

• 2 M/E rows
• 20 standards-converted 12G-SDI inputs
• 12× 12G-SDI aux outputs
• 2 Multiview outputs
• 2 DVEs, 8 ATEM Advanced Keyers
• SuperSource (for multi-box layouts)
• USB webcam output
• Fairlight 48-channel audio mixer

Best church use cases:

• Medium–large churches with 8–14 cameras and multiple graphics sources
• Main sanctuary plus overflow room or a dedicated online mix in addition to IMAG
• When you need one M/E for IMAG and a second M/E for a separate online/broadcast mix

---

The ATEM 4 M/E Constellation 4K is built for very large productions. It’s a 4RU switcher with lots of I/O and processing power.

Key Specs (simplified):

• 4 M/E rows
• 40 standards-converted 12G-SDI inputs
• 24× 12G-SDI aux outputs
• 4 independent Ultra HD multiviews
• 4 DVEs, 16 ATEM Advanced Chroma Keyers
• 2 SuperSource processors (for complex box layouts)
• Fairlight 156-channel audio mixer

Best church use cases:

• Large churches with multiple venues or auditoriums fed from one control room
• Complex productions with multiple language feeds, online campus, and IMAG
• Ministries needing redundant program feeds and multiple custom outputs (lobby, record, web, overflow, broadcast)

---

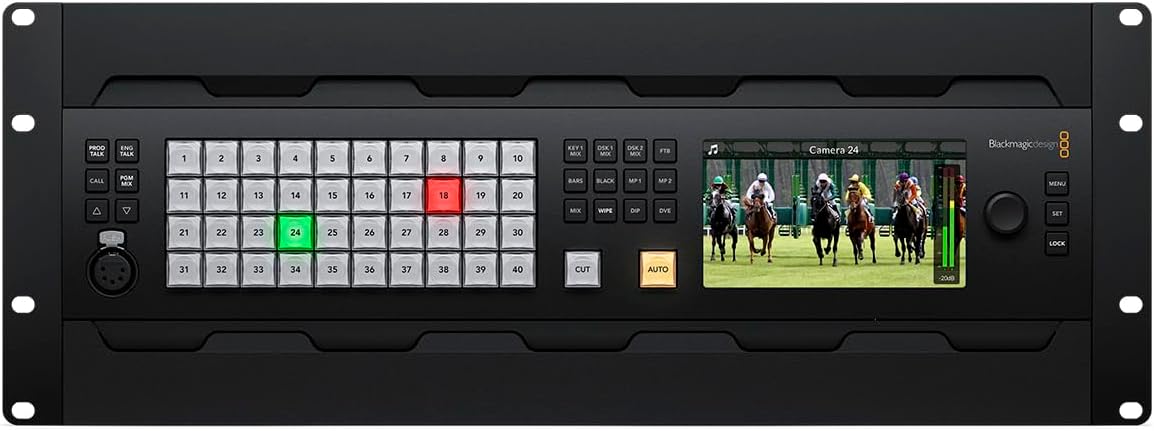

The ATEM 4 M/E Constellation 4K Plus is the largest model in the Constellation 4K line, essentially doubling the I/O of the standard 4 M/E.

Key Specs (simplified):

• 4 M/E rows
• 80 standards-converted 12G-SDI inputs
• 48× 12G-SDI aux outputs (52 total video outputs)
• 4 Ultra HD multiviews
• 4 DVEs, 16 ATEM Advanced Chroma Keyers
• 2 SuperSource processors
• Fairlight 156-channel audio mixer

Best church use cases:

• Multi-campus broadcast centers or denominational hubs
• Events where you need to bring in dozens of cameras, remote feeds, and graphics systems
• Churches producing content not just for Sunday, but also for TV, streaming networks, and on-demand video all week long

---

ATEM Constellation 4K Comparison Table

Model	M/E Rows	12G-SDI Inputs	12G-SDI Aux Outputs	Multiviews	Typical Church Size / Use
ATEM 1 M/E Constellation 4K	1	10	6	1	Large single campus, 6–10 cameras, basic 4K SDI workflow
ATEM 2 M/E Constellation 4K	2	20	12	2	Medium–large church with IMAG + separate online/overflow mix
ATEM 4 M/E Constellation 4K	4	40	24	4	Large church or multi-venue with many outputs and language feeds
ATEM 4 M/E Constellation 4K Plus	4	80	48	4	Broadcast center or multi-campus hub needing “no-compromise” routing

---

Which ATEM Constellation 4K Is Right for Your Church?

Think in terms of cameras, rooms, and growth:

Choose ATEM 1 M/E Constellation 4K if:

• You’re a larger single-venue church
• You run up to 10 SDI sources (cameras + graphics)
• You want 4K SDI reliability without a big jump in complexity

Choose ATEM 2 M/E Constellation 4K if:

• You need IMAG and a separate livestream/broadcast mix
• You feed an overflow room or lobby from the same switcher
• You expect to grow beyond 6–8 cameras over time

Choose ATEM 4 M/E Constellation 4K if:

• You already have 10+ cameras and multiple rooms/venues
• You need many different program feeds (online, IMAG, broadcast, lobby, record, etc.)
• You want headroom for conferences, special events, or regional gatherings

Choose ATEM 4 M/E Constellation 4K Plus if:

• Your church or ministry operates as a true broadcast hub
• You need to connect dozens of cameras and external systems
• You’re producing content all week, not just during Sunday services

---

Final Thoughts

The ATEM Constellation 4K family is more than most churches will ever need—but for larger ministries, multi-campus systems, or broadcast-level production, it provides a stable, scalable backbone for live video. Whether your team prefers using the built-in front panel, the ATEM Software Control app, or an external hardware panel, the Constellation lets you grow into whichever control workflow fits your volunteers best.

If you’re currently using an ATEM Mini or ATEM SDI, this comparison shows what a future upgrade path could look like. As your ministry expands, a Constellation paired with good audio, shared storage, and a solid network can give your volunteers the confidence and flexibility to handle even the biggest services.

---
